Cold Serie
Similar Products
80.60.052

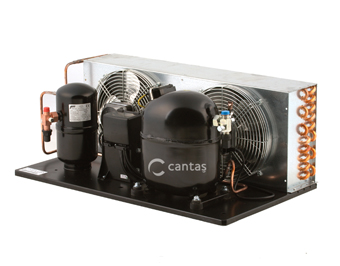

FrigoCraft M007.A02SF4225.T6217Z.EP5 Condenser Unit
456,86 EUR
Sales Unit:
:
Pieces
Technical Information
Documents
Without Housing Type
Her.Reciprocating and scroll compressors and Frigocraft brand fan motors are used in Without Housing type products. These products are mostly used for commercial refrigerators with internal compressors.
Apart from standart production, products which is specialized according to case designs of refrigerator manufacturers, is also being produced.
Standart equipments used in products: Compressor, aluminum blade – inner grooved, condenser that has widely pitch spaced formed with copper tube, fan motor, grill or stand according to condenser, blade, filter dryer and chassis. They are being produced as single, double or triple fans in different chassis according to capacity. The products has been designed for getting optimal advantage from place and assembly (the height of the entire product is max 300 mm). After piping, assembling and tests they are packed. Thus they can be dispacted from our stocks directly.
Her.Reciprocating and scroll compressors and Frigocraft brand fan motors are used in Without Housing type products. These products are mostly used for commercial refrigerators with internal compressors.
Apart from standart production, products which is specialized according to case designs of refrigerator manufacturers, is also being produced.
Standart equipments used in products: Compressor, aluminum blade – inner grooved, condenser that has widely pitch spaced formed with copper tube, fan motor, grill or stand according to condenser, blade, filter dryer and chassis. They are being produced as single, double or triple fans in different chassis according to capacity. The products has been designed for getting optimal advantage from place and assembly (the height of the entire product is max 300 mm). After piping, assembling and tests they are packed. Thus they can be dispacted from our stocks directly.
Technical Features
General Features
Production Facility
Turkey
Brand
FrigoCraft
Type of casing
Condensing Units
Application
-10/45°C EN12900/10K-SH
Application Areas
Cold Serie
Room Volume - V (m³) (+40°C)
8
Room Volume - V (m³) (+45°C)
7
Room Volume - V (m³) (+50°C)
6
Refrigerant
R134a
Cooling Capacity (Watts) (+40°C)
988
Cooling Capacity (Watts) (+45°C)
917
Cooling Capacity (Watts) (+50°C)
843
Energy Efficiency (COP)
1,86
Body Model
FrigoCraft Base Plate -02 (700*450 - 2,00 mm)
Sound Level
63,00 dBA
Liquid Line
1/4"
Suction Line
3/8"
Charge Valve
-
Net Weight
-
Brute Weight
-
Compressor Features
Compressor Brand
Embraco
Compressor Type
Hermetic Reciprocating
Compressor Model
Compressor Crank Heater
-
Compressor Quantity & Power (Pcs-Hp)
1 x 0,75
Compressor Power Sup. (V / Ph / Hz)
220 - 230 / 1 / 50
Compressor Discharge line (Ø inches)
1/4"
Dompressor Suction line (Ø inches)
3/8"
Condenser and Fan Information
Condenser Brand
KARYER
Condenser Model
FrigoCraft Condenser - 06 (B-20813)
Condenser Capacity Watts Dt = 15 °C
2.355
Condenser Fin Space (mm)
2,50
Condenser Surface Area (m²)
5,19
Air Flow (m3/h)
1.102
Fan Motor Brand
FrigoCraft
Fan Motor Model
FRIGOCRAFT FCSMQ 16-26 16W FAN MOTOR
Rotation (RPM)
4 Poles (~1.400 RPM)
Fan Wing
Q Fan BLADE (SUCTION) 250MM-28° (1 bx=200Ad.)
Fan Brackets & Grills
Q Fan Wire Grill G254A 270x300x290x35 (1bx=50 pcs.)
Fan Motor (Quantity x Diameter)
2x250
Fan Motor Input Power (kW)
2x0,600
Fan Motor Power Sup. (V / Ph / Hz)
220 - 230 / 1 / 50
Fluid Line
Liquid Tank
Filter Dryers
Gas Sightglass
-
Solenoid Valve
-
Solenoid Valve Coil
-
Controls
Combined Pressure Control
-
Low Pressure Control
-
High Pressure Control
-
Fan Control
-
Electrical Panel
-
There are 15 documents for this product.
