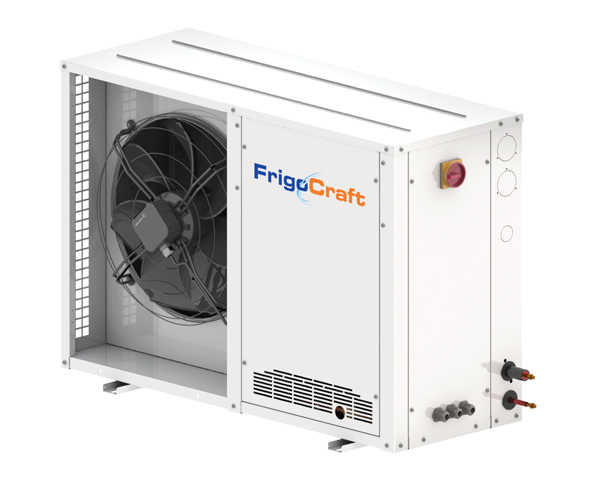

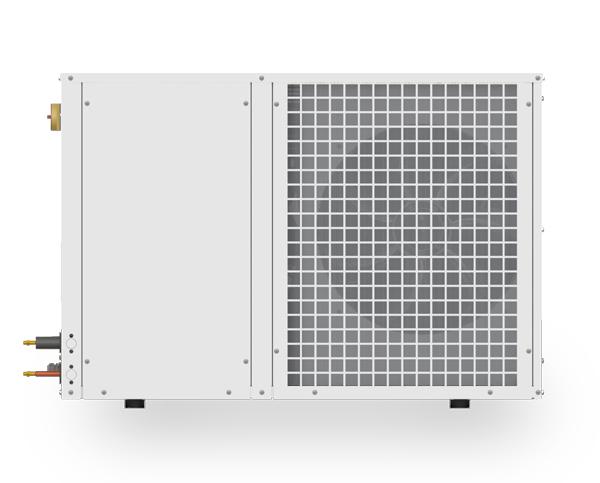

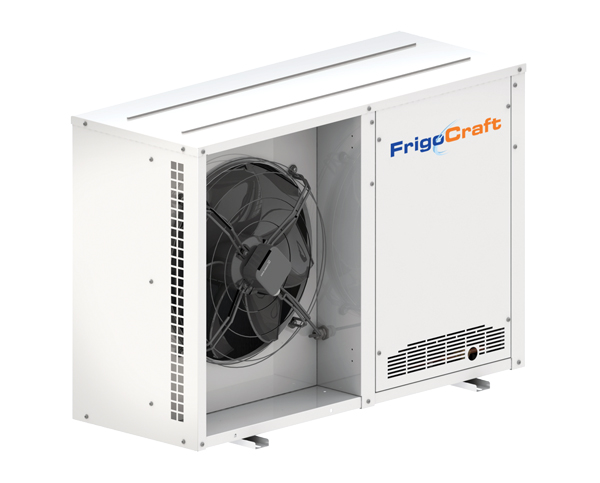

FrigoCraft M080-K04.SZ6150.MTZ040.DP4 Condenser Unit FrigoCraft M080-K04.SZ6150.MTZ040.DP4 Condenser Unit FrigoCraft M080-K04.SZ6150.MTZ040.DP4 Condenser Unit
80.10.112
FrigoCraft M080-K04.SZ6150.MTZ040.DP4 Condenser Unit
2.033,16 EUR
Sales Unit:
:
Pieces
Categorie:
:
Technical Information
Documents
With Housing - Silent Series

These products are more silent because of they are produced by using 6 poles ~ 900 rpm fan motors instead of standart series. It is a specialized series which solves high volume problems occuring in applications near to living environment. Optionally, volume can be reduced to possible lowest level by applying sound insulations. Pitch space of condensers is 2,10 mm and inner – grooved copper tubes are used.

In all series, the difference of condensation and ambient temperature (?t) is calculated as 10 ºC. Thus all products have been able to work properly even the ambient temperature is +40ºC. Whole production process is controlled with barcode system.
Technical Features
General Features
Production Facility
Turkey
Brand
FrigoCraft
Type of casing
With Housing - Silent Series
Application
-10/45°C EN12900/10K-SH
Application Areas
Cold Serie
Room Volume - V (m³) (+40°C)
95
Room Volume - V (m³) (+45°C)
80
Room Volume - V (m³) (+50°C)
70
Refrigerant
R404A
Cooling Capacity (Watts) (+40°C)
5.959
Cooling Capacity (Watts) (+45°C)
5.333
Cooling Capacity (Watts) (+50°C)
4.693
Energy Efficiency (COP)
1,81
Body Model
FrigoCraft Base Plate - 4-CHH-145
Sound Level
31,08 dBA/10m
Liquid Line
3/8"
Suction Line
5/8"
Charge Valve
-
Net Weight
-
Brute Weight
-
Compressor Features
Compressor Brand
Danfoss
Compressor Type
Hermetic Reciprocating
Compressor Model
Compressor Quantity & Power (Pcs-Hp)
1 x 3,30
Compressor Power Sup. (V / Ph / Hz)
380 - 400 / 3 / 50 - 60
Compressor Discharge line (Ø inches)
1/2"
Dompressor Suction line (Ø inches)
5/8"
Condenser and Fan Information
Condenser Brand
KARYER
Condenser Model
frigoCraft Condenser - 4-CHH-145
Condenser Capacity Watts Dt = 15 °C
13.578
Condenser Fin Space (mm)
2,10
Condenser Surface Area (m²)
27,70
Air Flow (m3/h)
4.479
Fan Motor Brand
Zıehl-Abegg
Fan Motor Model
-
Rotation (RPM)
6 Poles (~900 RPM)
Fan Wing
-
Fan Brackets & Grills
-
Fan Motor (Quantity x Diameter)
1x500
Fan Motor Input Power (kW)
1X0,300
Fan Motor Power Sup. (V / Ph / Hz)
220 - 230 / 1 / 50
Fluid Line
Liquid Tank
FrigoCraft 4lt 3/8" Receiver
Filter Dryers
-
Controls
Low Pressure Control
-
High Pressure Control
-
Electrical Panel
FrigoCraft Schneider E. Triphase Panel 7-10 A.
