Cold Serie
Related Products
80.10.150

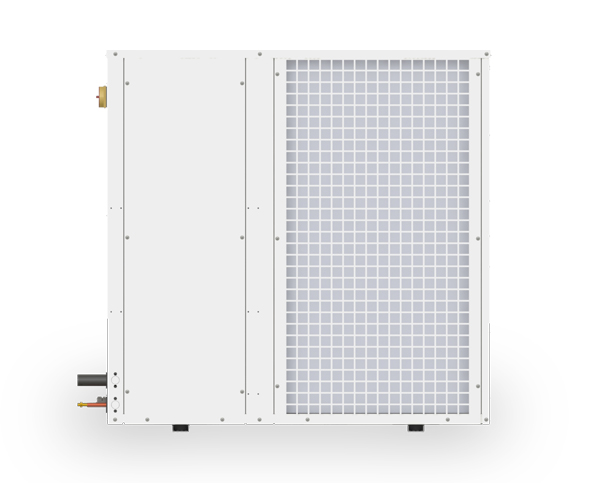

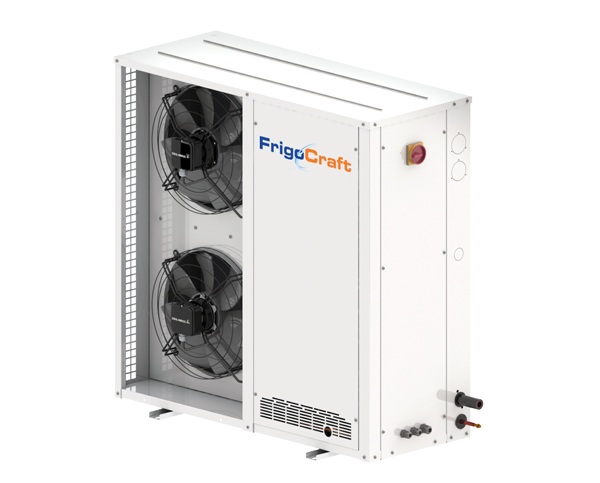

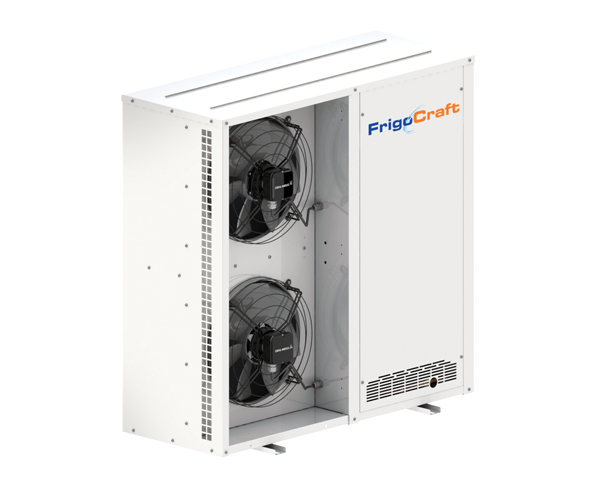

FrigoCraft M135-K05.SZ4240.MTZ064.DP4 Split Un.
2.672,54 EUR
Sales Unit:
:
Pieces
Technical Information
Documents
With Housing Type
Her.Reciprocating and scroll compressors are used in close split type products.Pitch space of condensers is 2,10 mm and inner – grooved copper tubes are used.These products are produced for the purpose of using in these fields : To refrigerate rayon and creamer fridge using low back and high back working regime, cold rooms, milk tanks, ice machines. They are being produced as single, double or four fans in different chassis according to capacity.4 pole ~ 1.400 rpm fan motors are used.
In all series, the difference of condensation and ambient temperature (?t) is calculated as 10 ºC. Thus all products have been able to work properly even the ambient temperature is +40ºC. Whole production process is controlled with barcode system.
Her.Reciprocating and scroll compressors are used in close split type products.Pitch space of condensers is 2,10 mm and inner – grooved copper tubes are used.These products are produced for the purpose of using in these fields : To refrigerate rayon and creamer fridge using low back and high back working regime, cold rooms, milk tanks, ice machines. They are being produced as single, double or four fans in different chassis according to capacity.4 pole ~ 1.400 rpm fan motors are used.
In all series, the difference of condensation and ambient temperature (?t) is calculated as 10 ºC. Thus all products have been able to work properly even the ambient temperature is +40ºC. Whole production process is controlled with barcode system.
Technical Features
General Features
Production Facility
Turkey
Brand
FrigoCraft
Type of casing
With Housing
Application
-10/45°C EN12900/10K-SH
Application Areas
Cold Serie
Room Volume - V (m³) (+40°C)
150
Room Volume - V (m³) (+45°C)
135
Room Volume - V (m³) (+50°C)
120
Refrigerant
R404A
Cooling Capacity (Watts) (+40°C)
9.017
Cooling Capacity (Watts) (+45°C)
7.982
Cooling Capacity (Watts) (+50°C)
6.950
Energy Efficiency (COP)
1,90
Body Model
FrigoCraft Base Plate - 5-CHH-240
Sound Level
43,97 dBA/10m
Liquid Line
1/2"
Suction Line
7/8"
Charge Valve
-
Net Weight
-
Brute Weight
-
Compressor Features
Compressor Brand
Danfoss
Compressor Type
Hermetic Reciprocating
Compressor Model
Compressor Crank Heater
Compressor Quantity & Power (Pcs-Hp)
1 x 5,30
Compressor Power Sup. (V / Ph / Hz)
380 - 400 / 3 / 50 - 60
Compressor Discharge line (Ø inches)
3/4"
Dompressor Suction line (Ø inches)
7/8"
Condenser and Fan Information
Condenser Brand
KARYER
Condenser Model
FrigoCraft Condenser - 5-CHH-240
Condenser Capacity Watts Dt = 15 °C
20.465
Condenser Fin Space (mm)
2,10
Condenser Surface Area (m²)
40,60
Air Flow (m3/h)
6.551
Fan Motor Brand
Zıehl-Abegg
Fan Motor Model
-
Rotation (RPM)
4 Poles (~1.400 RPM)
Fan Wing
-
Fan Brackets & Grills
-
Fan Motor (Quantity x Diameter)
2x400
Fan Motor Input Power (kW)
2x0,268
Fan Motor Power Sup. (V / Ph / Hz)
220 - 230 / 1 / 50
Fluid Line
Liquid Tank
FrigoCraft 6lt 1/2" Receiver
Filter Dryers
-
Gas Sightglass
Solenoid Valve
-
Solenoid Valve Coil
Controls
Combined Pressure Control
Low Pressure Control
-
High Pressure Control
-
Electrical Panel
FrigoCraft Schneider E. Triphase Panel 9-13 A.
There are 16 documents for this product.
